Low Floor Luton Van Buying Guide
Choosing the correct low floor luton van is a critical decision for any operator involved in multi-drop deliveries, removals, rental fleets, or parcel distribution. The Alloy Bodies HILO low floor Luton van has become a popular choice thanks to its innovative design, lightweight construction, and driver-friendly improvements.
This buying guide walks you through everything you need to consider before investing in a low floor luton van — from payload and access advantages to chassis options and real world use cases.
What Is a Low Floor Luton?

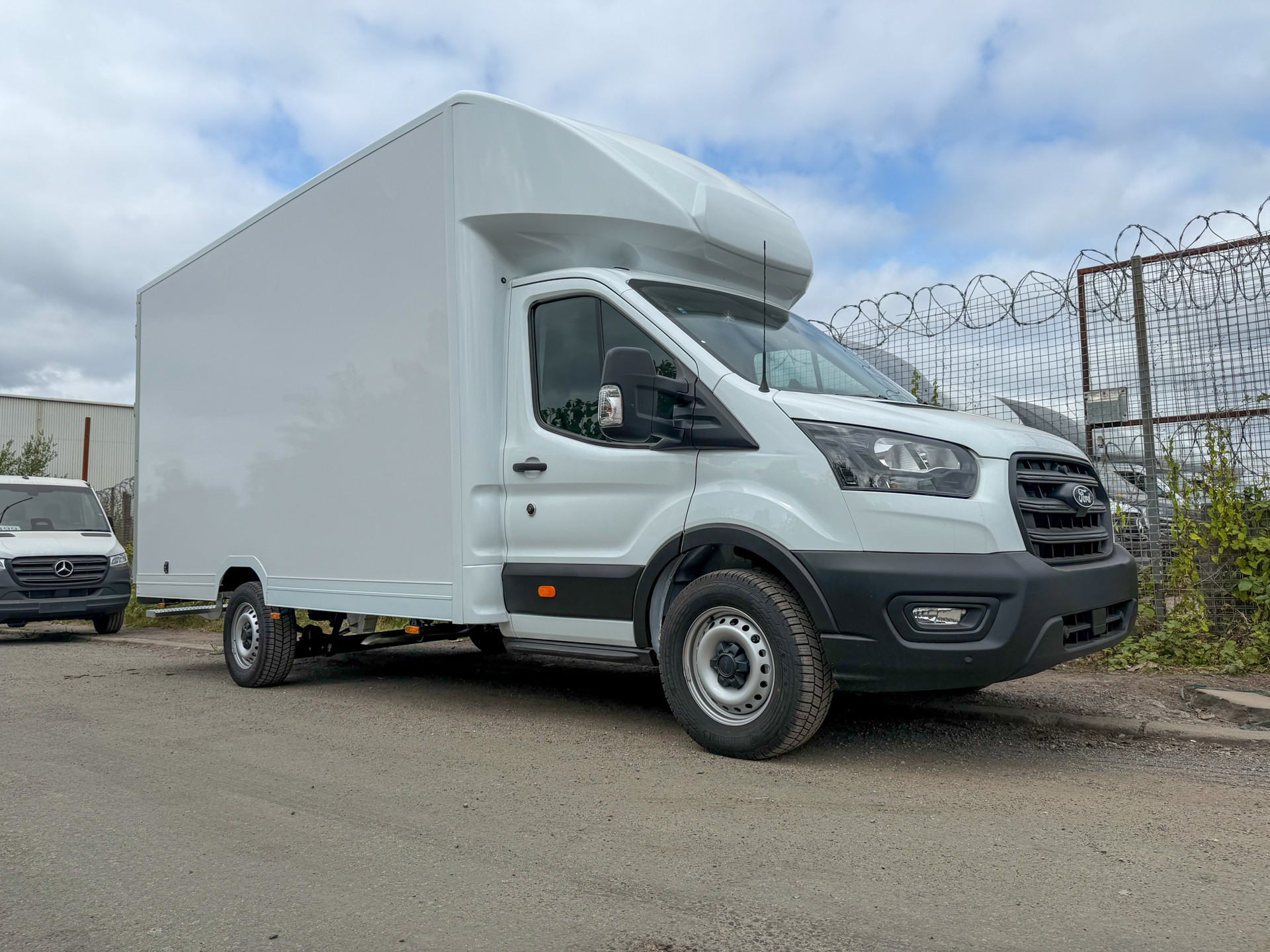

Our HILO (High Volume, Low Floor) Luton is our purpose designed van conversion, engineered to reduce load entry height without compromising internal volume or payload performance.
Unlike our Evoluton, the HILO uses a lower rear floor height base vehicle usually referred to as a ‘platform cab’ or ‘flat frame’ chassis. This low entry dramatically improves loading efficiency and reducing strain on drivers during frequent manual loading and unloading.
Key Benefits of the Low Floor Design
- Reduced Load Height
One of the biggest selling points of the HILO is its significantly lower floor height compared to standard Lutons.
This offers:
- Easier loading and unloading
- Reduced reliance on tail lifts
- Reduced risk of driver injury
- Faster loading/unloading cycle for multi-drop routes
This is particularly valuable for parcel delivery, white goods, and rental operations where drivers may not have the required HGV licence classification.
- Advanced Lightweight Construction
Our designs are renowned for maximising payload through lightweight body construction.
Key advantages on our low floor luton conversion include:
- Aluminium subframe components
- Aluminium rear frame
- Advanced lightweight composite body panels and floors
- Improved design to remove mechanical fixings.
For operators running at 3.5t GVW , every kilogram saved counts. For example one extra item delivered per day can easily outweigh the up front cost of advanced lightweight components.
- Versatility
Our HILO provides the ultimate in operational versatility where our engineering team can offer solutions based designs.
- Custom internal racking padded rails, gas bottle racks…etc
- Full rear closure ramp for loading lawnmowers, brushes etc
- Retractable ramps for loading bikes, machines, motorbikes etc
- BK2 – Bulk container type specification safe transportation of clinical waste
- Internal sloping frails (for carrying worktops, glass, window frames, doors etc.)
Common Chassis Options
The HILO body is available on several popular chassis platforms, including:
Renault Master Platform Cab
- Excellent for payload focused builds
- Strong value-for-money option
- Popular with rental and fleet buyers
- Latest generation chassis with EV variants
- Large dealer support.
MAN TGE Flat frame
- Renowned for durability
- Ideal for higher load cycles
- Available with automatic transmission
- Truck based dealer network with 24 hour servicing
Mercedes-Benz Sprinter FWD
- Premium choice with advanced safety tech
- Renowned for durability
- Industry leading product support with excellent dealer network
- Strong residual values
Nissan Interstar Platform Cab
- Excellent for payload focused builds
- Strong value-for-money option
- Good retail dealer support
- Latest generation chassis with EV variants
Choosing the right chassis depends on duty cycle, budget, driver preference, and fleet standardisation.
Body Sizes and Configurations
Our HILO low floor luton conversions are typically available in a range of body lengths, often including:
- 4.2m
- 4.5m
- 4.7m (chassis dependent)
You’ll also want to consider height options depending on load volume requirements and overall vehicle access restrictions.
HILO is offered in three heights, but this is dependant on the base vehicle.
- Standard HILO – 2310mm
- HILO Plus – 2570mm
- HILO MAX – 2700mm
Tail Lift or No Tail Lift?
One major advantage of the HILO design is that some operations can remove or downgrade their tail lift requirement.
When a Tail Lift Makes Sense
- Heavy or palletised goods
- Limited fork truck unloading potential at destination – residential properties
- Limited physical ability of driver/operator.
When You Might Not Need a Tail Lift
- Hand-loaded small parcels less than 25kg
- Furniture delivery
- Domestic appliances
- 2 person operation
Reducing tail lift reliance can save weight, cost, maintenance, and downtime.
Driver Comfort and Safety Considerations
A well specified HILO Luton can improve driver satisfaction and retention. Consider adding:
- Side loading door
- Rear access step
- Additional vehicle LED lighting
- Rear step
- Load securing rails or straps
Lower step-in height also means less fatigue over long shifts, particularly for multi-drop routes.
Who Is the HILO Best Suited For?
The Alloy Bodies HILO is particularly well suited to:
- Parcel and courier companies
- Home delivery and e-commerce fleets
- Vehicle rental operators
- Removal and light logistics businesses
- Local authority and utility fleets
If your operation values speed, accessibility, payload efficiency, and driver welfare, then low floor lutons offer a credible alternative.
New vs Used HILO Lutons
Buying New
- Custom specification
- Latest chassis technology
- Latest innovation in body designs
- Manufacturer warranties
- Ideal for long-term fleet ownership
Buying Used
- Lower upfront cost
- Faster availability
- Proven designs
- Ideal for budget-conscious buyers
When buying used, always check:
- Structural body condition particularly at the rear where the most damage may occur
- Water ingress potentially within the luton pod where tree damage may have occured and also around the internal wheelboxes
- Wear and load damage to body floor and internal wheel boxes
- Tail lift service history if fitted
- Rear extensions
If you are buying a used Alloy Bodies HILO conversion then we can support the product in it’s second life and beyond with Parts, Repairs and Maintenance
Did you know?

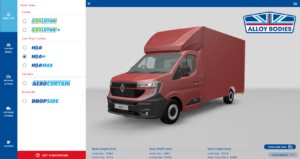

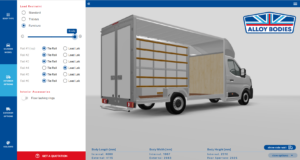

You can configure your own low floor luton on our 3D configurator and request a price for your exact specification?
